IntelliVision II True 16 Left Hand Stick

Description

This is the order page for the IntelliVision II True 16 controller, this is for the Left Hand Stick (LHS).  Photos and video to be updated.

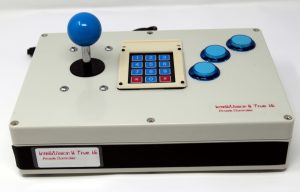

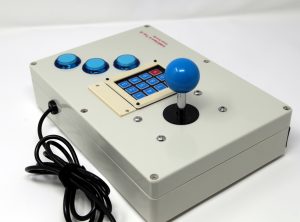

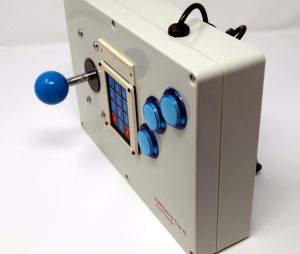

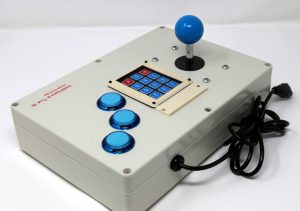

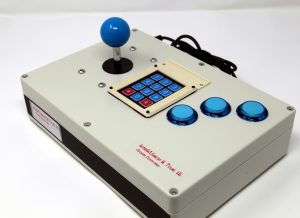

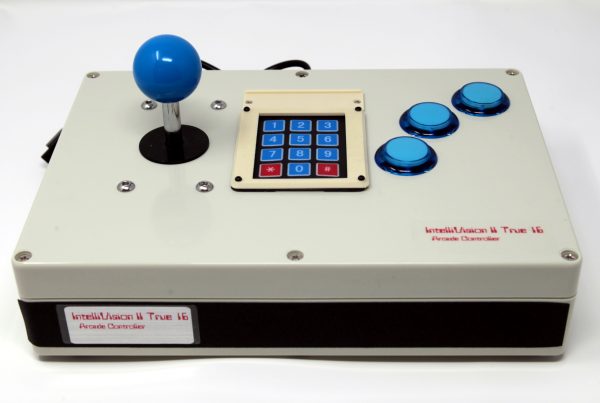

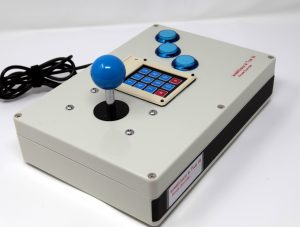

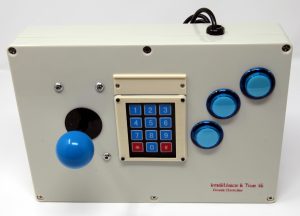

This controller has the joystick on the Left Hand Side, buttons on the right, and the keypad overlay holder also has a stop, like the original controller to prevent the overlay from slipping out.

I finally have my latest creation working!  The True 16 controller features:

True 16 way arcade style joystick, 8 micro-switches are used.  I added a second deck to joystick that is turned 45 degrees.

Membrane keypad with overlay holder.  Similar, but less mushy than the original keypad.  No external 5V is used.  Electrically the True 16 is identical to the original controller.

3 independent buttons, arcade style, 30mm, with the joystick on the left hand side.

6 foot high quality cord with strain relief.

This version is for the IntelliVision II.  I will also be releasing an IntelliVision I, which uses a DuPont style connector.

The controllers are hand assembled in USA.

I have parts on hand for an initial 9 controllers, with parts for 5 more on the way.
